Name: Power Protection PCB Assembly with 1-32 Layers ENIG RoHs ISO9001 Certified
Brand: Suntek Electronics Co., Ltd.
SKU: F060-1026
Price: 49.10 USD
Availability: InStock

Evde > Ürünler > Güç Koruma PCB Montajı >

Power Protection PCB Assembly with 1-32 Layers ENIG RoHs ISO9001 Certified

1L-32L Layers Power Protection PCB Assembly

0.5OZ-10OZ Copper PCBA

1.0mm/1.6mm/2mm/4mm Thickness Printed Circuit Board Assembly

Menşe yeri:

Çin veya Kamboçya

Marka adı:

Suntek/BLSuntek

Sertifika:

ISO9001 ISO13485 IATF16949 UL

Model numarası:

F060-1026

Bizimle İletişim

Bir İndirim İste

Ürün detayları

Malzeme::

FR4 (TG130-TG180)/Rogers/Alüminyum

Lehim Maskesi::

Yeşil, mavi, siyah, kırmızı, beyaz, mat renk

Bakır::

0.5oz-10oz

Katman::

1L-32L

Smt, tht::

Evet

Kalınlık::

1.0mm/1.6mm/2mm/4mm

RoHS::

Kurşun veya kurşun ücretsiz

Garanti::

1 yıl

Delik min.::

0.1 mm

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Limit yok

Fiyat

Customized products

Ambalaj bilgileri

ESD çanta ve karton tarafından

Teslim süresi

Tüm bileşenlerden 5-7 gün sonra

Ödeme koşulları

T/T

İlişkili Ürünler

video

Kalın Bakır 5OZ pcb imalatı ve montajı

En İyi Fiyatı Alın

video

Tek Noktadan Çözüm Güç Koruması Özel Devre Kartı Montaj Hizmetleri ROHS /UL

En İyi Fiyatı Alın

video

2OZ Copper PCB Assembly Immersion Gold for High Power Protection ROHS

En İyi Fiyatı Alın

video

Custom Power Protection PCB Assembly 1L-32L ROHS Compliant

En İyi Fiyatı Alın

Bizimle İletişim

0086-731-84874736

Şimdi iletişime geçin

Ürün Açıklaması

Power Protection PCB Assembly with 1-32 Layers ENIG RoHs ISO9001 Certified

About Suntek Group: Suntek is a contract supplier in EMS field with one-stop solution for FCB/FPC assembly, Cable assembly and Box-build assembly. Suntek Electronics Co., Ltd, as the major facility, located in Hunan Prov, China; BLSuntek Electronics Co., Ltd, as the new facility, located in Kandal Prov, Cambodia.

With ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377 certified, we deliver qualified products with competitive price to clients all over the world.

With your Gerber file and BOM, we can make it into a real product.
With your physical sample, we can provide the reverse-engineering service to help you copy this product.
With your ideas, we can provide the joint-design service to help you build this product.

Capabilities Overview

Specifications	Details
Material type	FR-1, FR-4, CEM-1, aluminum clad
Material thickness (mm)	0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0
Layer count	1 to 8 Layers
Max. Board size	23.00" x 35.00"(580mm*900mm)
IPC class	Class II, Class III, Class 1
Annular ring	5 mil/side or Greater (Min. Design)
Finish plating	Solder(HASL), Lead Free Solder(HASL), ENIG (Electroless nickel immersion gold), OSP, immersion silver, immersion tin, immersion nickel, hard gold, other
Copper weight	0.5OZ-2OZ
Trace/space width	3 Mils or greater
Drill clearance	0.1mm(laser drilling)
Plated slots	0.036 or greater
Smallest hole (finished)	0.1mm or greater
Gold fingers	1 to 4 Edge (30 to 50 Micron Gold)
SMD pitch	0.080" - 0.020" - 0.010"
Solder mask type	LPI Glossy, LPI-Matte, SR1000
Solder mask color	Green, red, blue, black, white, yellow
Legend color	White, yellow, black, red, blue
CNC route point	Any
Minimum route width	0.031"
Scoring	Straight lines, jump scoring, panel edge to edge, CNC*
Body gold	HARD, IMMERSION (up to 50 MICRON GOLD)
Data file format	Gerber 274x with embedder aperture
FAB. Drawing format	DXF, HPGL, DWG, PDF, Gerber
E.T testing	Flying probe, single sided, 1up plate, clamp shell, net list
Counter sink/counter bore	Available up to 0.250 Diameter
Control impedance	Yes
Blind vias/buried vias	Yes
Peelable mask	Yes
Carbon	Yes

Application:

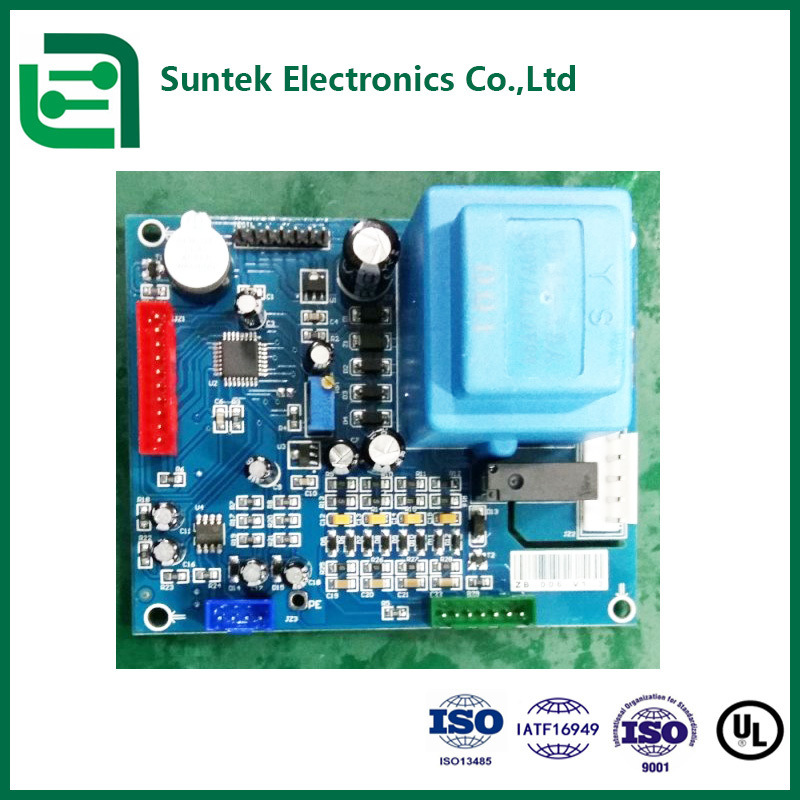

Power Protection PCB Assembly with 1-32 Layers ENIG RoHs ISO9001 Certified 1

We provide comprehensive manufacturing solutions including:

PCB/FPC fabrication
Components sourcing
PCB/FPC assembly
Custom cable/harness assembly
Box build

Detailed Services:

SMT, THT, BGA, 0201 Chips assembly
AOI, X-Ray, ICT, FT, Burn-in
Conformal coating or gluing
High-mix, small to medium volume

EMS Advantages

Strict product liability, taking IPC-A-610 standard
All teams can speak fluent English
PDCA management tool
100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
100% AOI inspection, including X-ray, 3D microscope and ICT
High-voltage test, impedance control test
ISO9001, ISO13485, IATF16949 and UL certified
No minimum order quantity
Focus on low to medium volume production
Quick and on-time delivery

Why Choose Suntek?

As an experienced and reliable manufacturer, Suntek provides one stop service, including PCB manufacturing and PCB assembly for all customers in the global who has diversity requirements in their projects with our strong teams. It can help customers to save their time and money to complete their products with the highest quality but favorable price in only one place.

Instant Quote

You will get our instant quote within 24 hours to 48 hours and positive feedback for all your specifications about your projects.

Strong Team

Our professional and experienced experts and engineers will give you the technical support from PCB design to the turnkey PCB assembly all the times. All questions can be answered in the whole process without time delay.

Automatic Equipment

All advanced automatic equipment helps us to improve working efficiency and cost efficiency. We will do everything possible to offer you the boards with the highest quality but competitive price on time.

After Sales Service

We will track all orders for all customers throughout. Our customer service representatives will be online available to give you the instant update in every process.

Our Supports

We ensure cost transparency, BOM cost breakdown sharing; We have components suppliers from the Global.

We have a written process to advise customers of any schedule delays or product quality problems, by:

Customer service procedure
RMA procedure
8D reports
PDCA(Plan-Do-Check-Action) in customer service

We respond to the complaints, issues and queries in 24 hours, by:

Weekly reports
Customer supporting team to review communication times
Customer satisfaction questionnaire

Aftersales services:

1-year guarantee period for all of products
FOC repair
Quick compensation parts to replace defectives.

PCB Assembly Quality System

Our target: 95% customers satisfied.
Our quality policy: Continuous improvement makes the perfect quality, and reach a win-win relationship with customers.
Our solution: One-stop, Flexible, Continuous improvement.
Our business philosophy: Quality Wins Market, Ideas Create The Future.
Our vision: The long-term win-win partners in EMS field.

PCBA Assembly Flow Chart

FAQ

Q1: What files do you use in PCB fabrication?

A1: Gerber, PCB. Auto CAD

Q2: How do you make sure the quality?

A2: Our Product is all 100% E-tested. PCB Assembly are with 100% AOI, ICT, FT and Visual checking, 100% X-ray for BGA.

Q3: Can we visit your company?

A3: Of course, Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha, Hunan province, China.

Q4: What is the lead time?

A4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.

Q5: Will you keep our information and files secret?

A5: Sure, It is our basic principle to keep business secrets to protect our customers' designs. NDA can be signed at any time.

Q6. How to work with you?

A6:

Email and send us the PCB layout file, BOM list
We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
Waiting for your company to confirm the price, order and payment terms.
We will proceed the order.

We have advanced manufacturing equipments and technology, professional engineer team, purchasing team, quality team and management team to guarantee the high quality products and on time delivery. Our products are widely used in industrial control, auto, telecommunications, medical equipment, consumer electronics and etc.

Factory Pictures
