Name: Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole
Brand: Suntek Electronics Co., Ltd.
SKU: F9632-123
Price: 50.00 USD
Availability: InStock

Evde > Ürünler > Anahtarlı PCB Montajı >

Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole

Min. 0.05mm Board Thickness Turnkey PCB Assembly

Max 500mm*1200mm Board Size PCBA

Min. 0.025mm Laser Drilled Hole Printed Circuit Board Assembly

Menşe yeri:

Çin/Kamboçya

Marka adı:

Suntek

Sertifika:

ISO9001, ISO13485, TS16949 and UL E476377

Model numarası:

F9632-123

Bizimle İletişim

Bir İndirim İste

Ürün detayları

PCB Anahat:

Kare, Daire, Düzensiz (Jig'li)

Suface Finish:

Ivır zıvır

İşlem:

Daldırma Altın/şerit/montaj

Suface:

ENIG 2u

Maksimum boyut:

600mm*1200mm

ipek:

Beyaz

Empedans kontrolü:

50/90/100 ±% 10 ohm

Taşıma Paketi:

Vakum paketi

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

Based on GERBER and BOM

Ambalaj bilgileri

Vakum, anti-statik, ESD, kartonlar

Teslim süresi

Toplanan tüm parçalardan 1-2 hafta sonra

Ödeme koşulları

T/T, PayPal

Yetenek temini

100 adet/saat

İlişkili Ürünler

video

Turnkey PCB Assembly with White Silk and Vacuum Package for Industrial Control Applications

En İyi Fiyatı Alın

video

Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole

En İyi Fiyatı Alın

video

Tıbbi Ekipmanlar için Tam Anahtar Teslimi PCBA ve Kablo Montaj Üretimi RoHS UL

En İyi Fiyatı Alın

video

Turnkey PCB Assembly and EMS Solution with FR4 / Rogers / Aluminum Material 0.5OZ-10OZ Copper

En İyi Fiyatı Alın

Bizimle İletişim

0086-731-84874736

Şimdi iletişime geçin

Ürün Açıklaması

Turnkey PCBA Factory in China and Cambodia

Suntek Group is a professional contract manufacturer providing one-stop solutions for:

PCB/FPC assembly
Cable assembly
Mixed technology assembly
Box-build assembly

Manufacturing Facilities

Suntek Electronics Co., Ltd - Main facility located in Hunan province, China

BLSuntek Electronics Co., Ltd - New facility located in Kandal province, Cambodia

Certifications & Capabilities

Certified with ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377. We deliver high-quality products at competitive prices worldwide.

Our advanced manufacturing capabilities include:

State-of-the-art equipment
Proficient technical expertise
Professional engineering, purchasing, and quality teams
Reliable on-time delivery

Applications: Industrial control, automotive, telecommunications, medical equipment, consumer electronics.

Core philosophy: "Quality wins Market, Ideas create the Future"

Technical Specifications

Item	Capability
Min. Finished Board Thickness	0.05mm
Max Board Size	500mm*1200mm
Min Laser Drilled Hole Size	0.025mm
Min Mechanical Drilled Hole Size	0.1mm
Min. Trace Width/Spacing	0.035mm/0.035mm
Min. Annular Ring of Single/Double-side Board	0.075mm
Min. Inner Layer Annular Ring of Multi-layer Board	0.1mm
Min. Outer Layer Annular Ring of Multi-layer Board	0.1mm
Min Coverlay Bridge	0.1mm
Min. Soldermask Opening	0.15mm
Min. Coverlay Opening	0.35mm*0.35mm
Min Single-ended Impedance Tolerance	+/-7%
Max Layer Count	12L
Material Type	PI, Kapton
Material Brand	Shengyi, Taiflex, Thinflex, ITEQ, Allstar, Panasonic, Dupont, Jiujiang
Stiffener Material Type	FR4, PI, PET, Steel, AI, Adhesive Tape, Nylon
Coverlay Thickness	12.5um/25um/50um
Surface Finish	ENIG, ENEPIG, OSP, Gold Plating, Gold Plating+ENIG, Gold Plating+OSP, Imm Silver, Imm Tin, Plating Tin

Specialized Technologies

IC Programming
BGA rework
Chip on Board/COB
Eutectic soldering
Auto-Gluing
Conformal Coating

Assembly Process

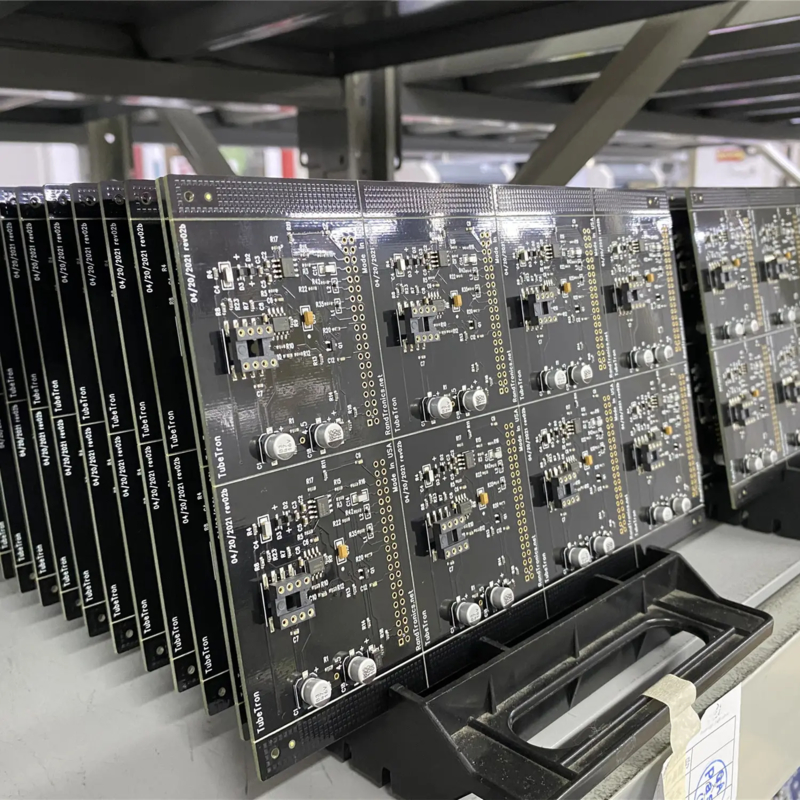

Manufacturing Showcase
